OrderThirdPartyService transition

Introduction:

The OrderThirdPartyService transition allows for third party services to be ordered via direct email to the specified supplier(s) from FBO One. This transition screen is added within a Service Workflow.

Typically, the transition is used for ordering by email to third-party suppliers for services such as transport, catering, laundry, etc.

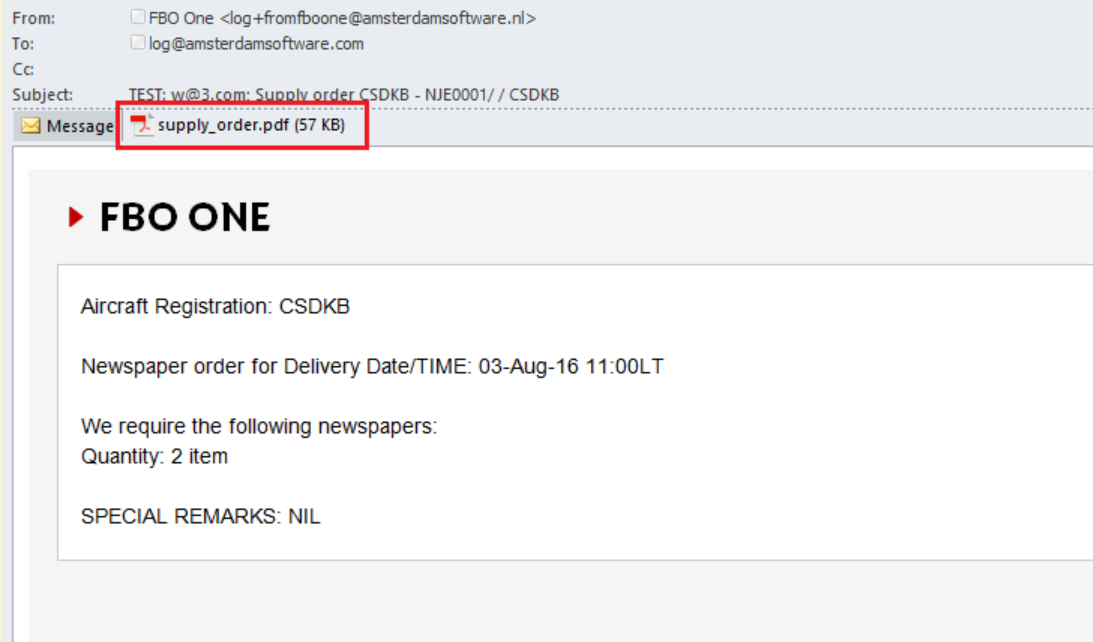

This transition generates from the SupplyOrderEmailSubject / SupplyOrderEmailBody and attaches a PDF version of the Supply Order itself.

Note: To send an email containing the Supply Order contents and without the PDF attachment, see OrderThirdPartyServiceTextOnly transition

Transition properties

Name	OrderThirdPartyService
Workflow type	Service
Linked to	Product
Purpose	Sends an email message to a supplier to order a 3rd party service with supply order attachment
Impacts	Service
Email out	YES
Product settings	YES
Configuration string	YES
Email message settings	YES
Report settings	YES

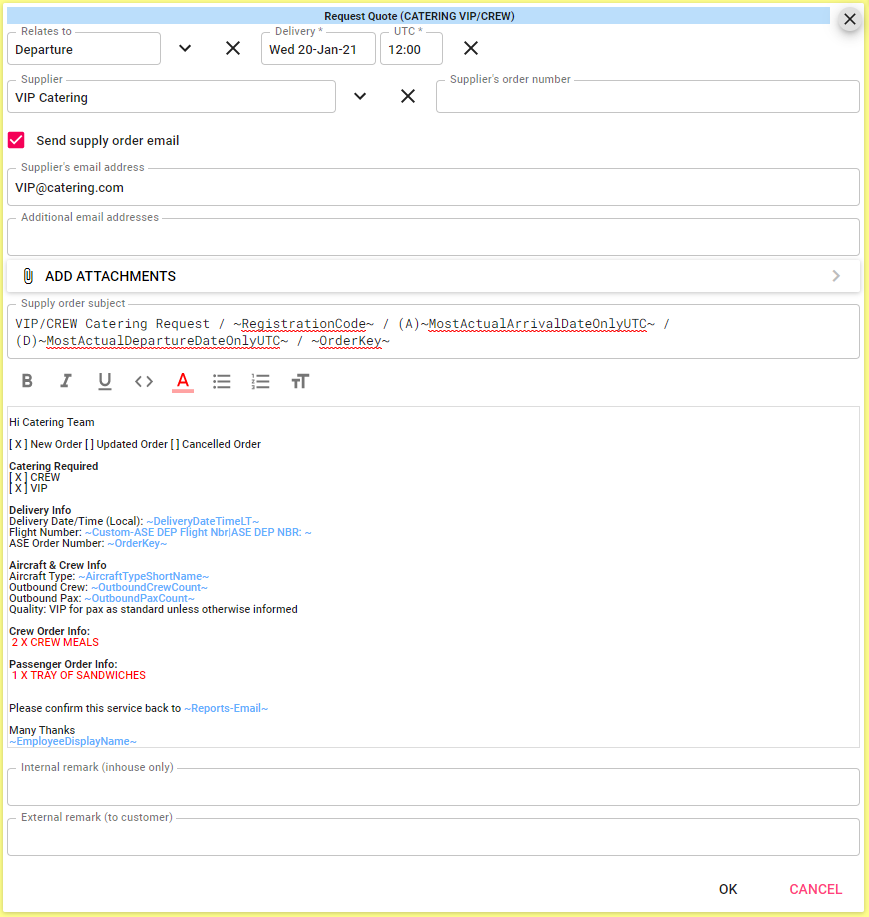

OrderThirdPartyService transition screen

Additional information

The list of available Suppliers as linked to this 3rd Party Service is controlled by the Suppliers list assigned to the product. See How to create a supplier & link them to a product.
The 'Supply order subject' and 'Supply order contents' fields are taken from the Supply order template assigned to the product via 'Edit Supply Order template' action in the product detail page.
1. Priority for lookup of Subject and Body for a given transition is as follows:
  1. ConfigString (from the workflow transition)
  2. OrderLine (from the user editing the subject/body text)
  3. Product (from the supply order template)
  4. Email/FBO Setting: SupplyOrderEmailSubject / SupplyOrderEmailBody

Product settings

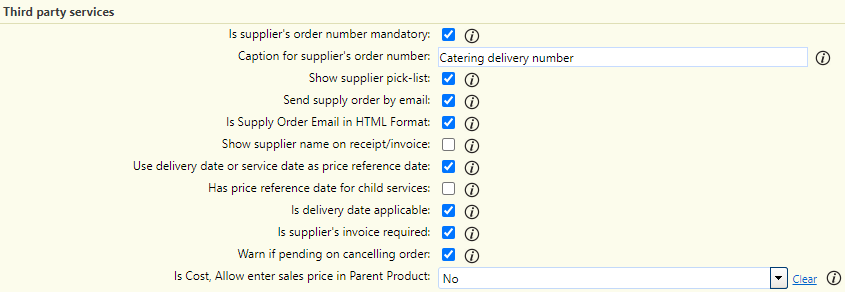

See below for a list of relevant product settings found in the Add Product - add/edit screen ‘Third party services’ section.

Product setting	Description	Example
Is supplier's order number mandatory	Indicates if the free text ‘Supplier’s order number' field is a mandatory field to be filled in the transition.
Caption for supplier's order number	Free text to change the ‘Supplier’s order number’ field title text to a user defined text.
Send supply order by email	Indicates if the ‘Send supply order email’ checkbox is automatically set to true on opening the transition. Note: Supply order is still sent if the checkbox is manually checked.
Is Supply Order Email in HTML Format	Indicates if the HTML editor is used for the Supply order contents field allowing for rich text formatting. If set to ‘False’ the supply order email out will contain no HTML formatting and show any HTML tags as plain text.
Use delivery date or service date as price reference date	Indicates if the ‘Delivery Date/Time’ field is mandatory for pricing.
Is Delivery Date Applicable	Indicates if the 'Delivery Date/Time' field is shown in the transition.
Show supplier pick-list	If no Suppliers are linked to the product, then ‘Supplier’ field with a drop down of all suppliers will show if product setting ‘Show supplier pick list’ is set. Otherwise, no drop down is shown, with manual adding of supplier emails available.

Configuration string settings

The following ‘Configuration string' settings can be set on the transition in Service workflows.

All settings must be separated by a semi-colon ';'. If not specified the default settings apply.

Configuration string	Type	Default	Description	Example
Subject	String	Blank	Allows overriding the default Supply template email subject/SupplyOrderEmailSubject for this workflow transition.	Subject=Revised catering order ~RegistrationCode~ / ~OrderKey~

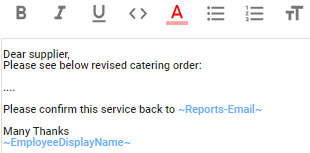

Body	String	Blank	Allows overriding the default Supply template email body/SupplyOrderEmailBody for this workflow transition.	Body=Dear supplier, Please see below revised catering order: .... Please confirm this service back to ~Reports-Email~ Many Thanks ~EmployeeDisplayName~;

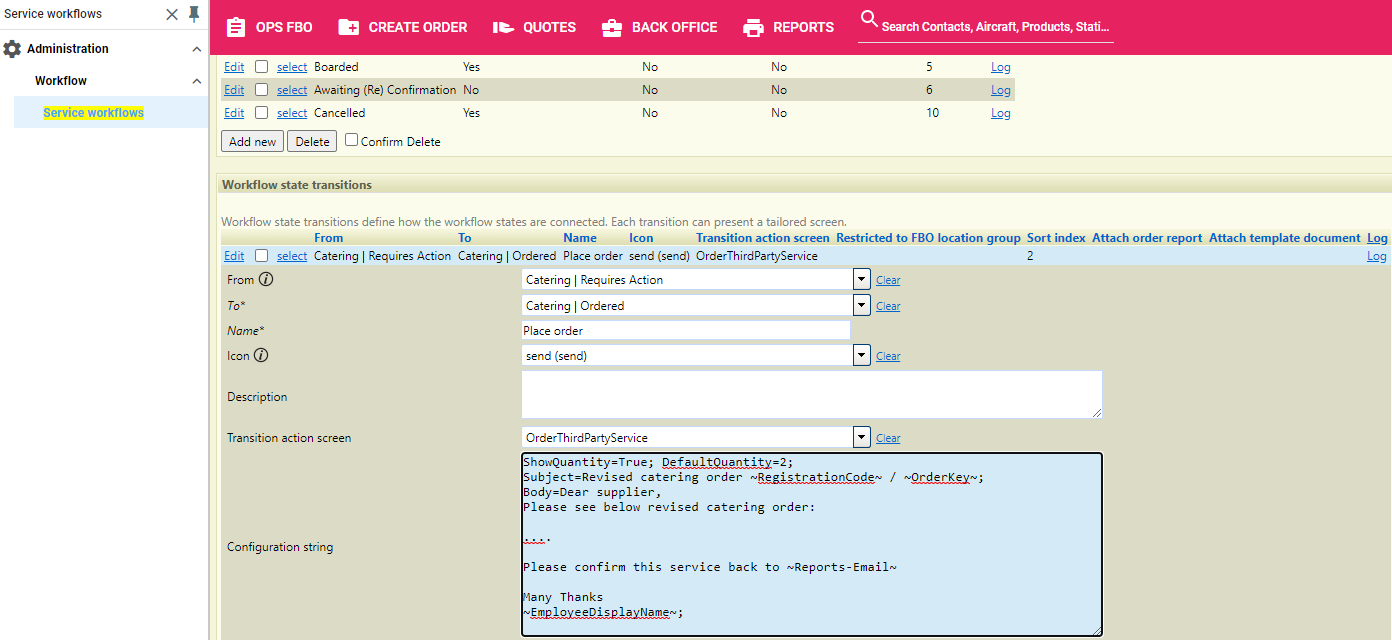

ShowQuantity	Boolean	False	By default, the 'Quantity' field does not appear in the OrderThirdPartyService transition screen. To show the Quantity field, ensure the 'Configuration string' ShowQuantity=true is added to the Service Workflow along with the transition:	ShowQuantity=True
DefaultQuantity	Integer	1	The ShowQuantity=true configuration string may be combined with the configuration string DefaultQuantity=1 (change the number accordingly) to ensure the quantity is set to a particular number by default	DefaultQuantity=2
ShowServiceInternalRemarks	Boolean	True	Indicates if the Internal Remarks field is shown in the transition (default is to hide).	ShowServiceInternalRemarks=true
ShowServiceExternalRemarks	Boolean	True	Indicates if the External Remarks field is shown in the transition (default is to show).	ShowServiceExternalRemarks=true
IsSupplierOrderNumberMandatory		None	Indicates whether the Suppliers Order Number is mandatory or not during the transition. For example when the product setting 'Is Supplier Order Number Mandatory', is set to true, and the configuration string IsSupplierOrderNumberMandatory=false is set within the service transition, then the field is no longer mandatory during this transition.	IsSupplierOrderNumberMandatory=false IsSupplierOrderNumberMandatory=true

Email message settings

Each Email message setting can be overridden per FBO location, by adding the setting in the ‘FBO location settings' section. See Email Message Settings (Administration)

Email message setting

Default

Description

Example

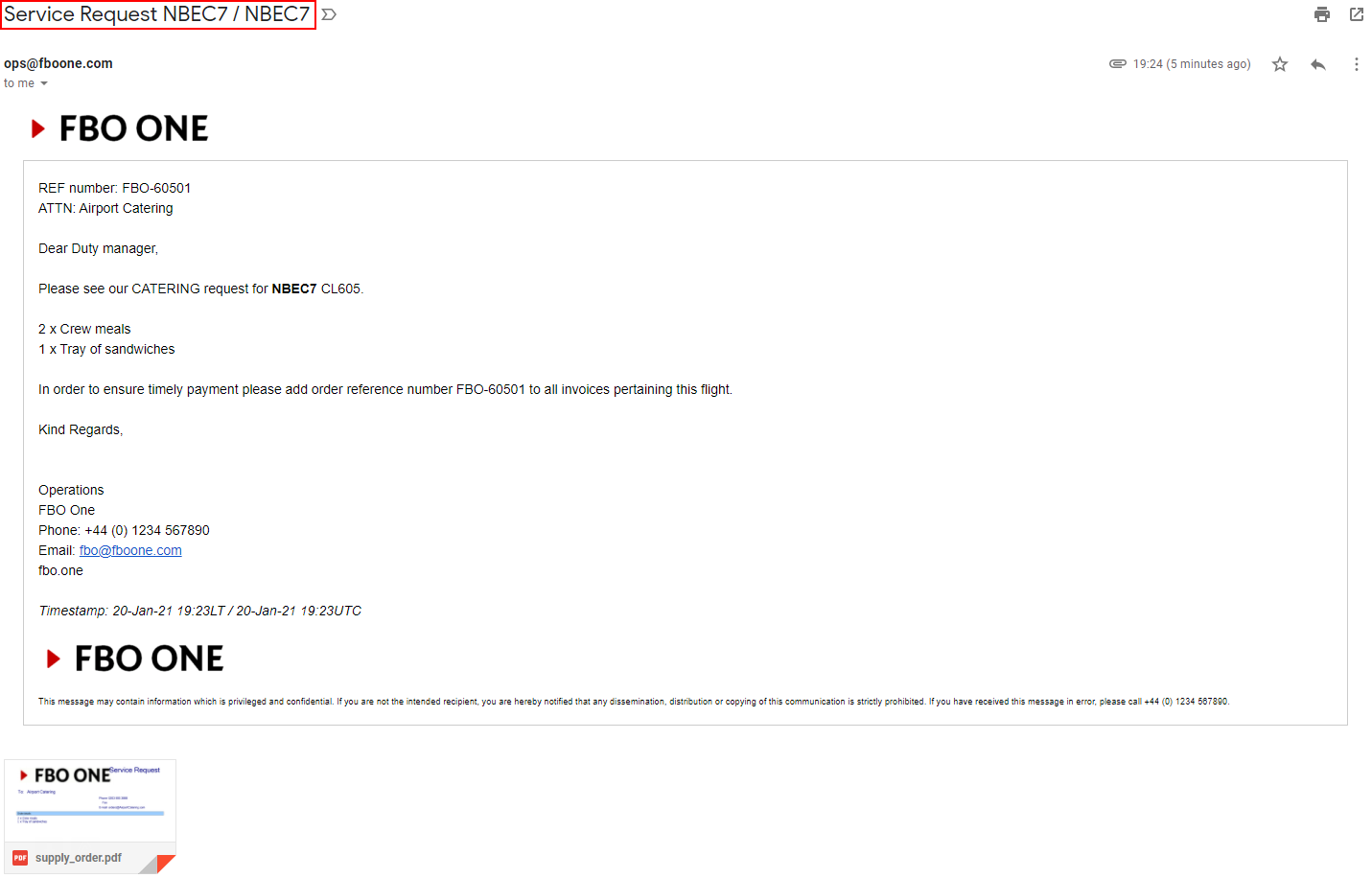

SupplyOrderEmailSubject

Service Request ~OrderDisplayName~ / ~AircraftRegistrationCode~

The email subject default for order 3rd party services.

See SupplyOrderEmailSubject / SupplyOrderEmailBody for more information.

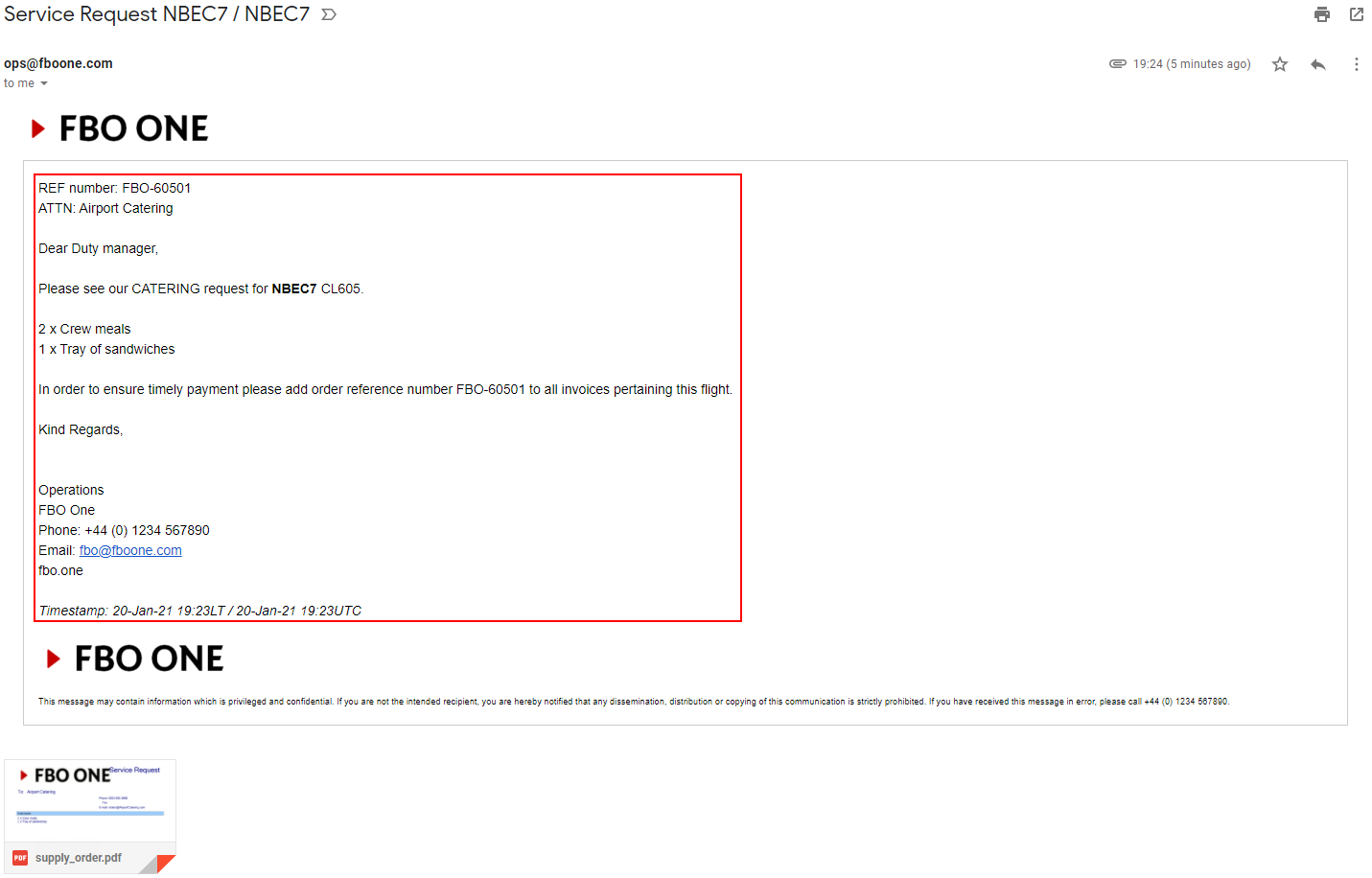

SupplyOrderEmailBody

REF number: ~OrderKey~
ATTN: ~SupplierContactName~

Dear Duty manager,

Please see our ~ProductCode~ request for ~RegistrationCode~ ~AircraftTypeShortName~.

~Supplyorderdetails~

In order to ensure timely payment please add order reference number ~OrderKey~ to all invoices pertaining this flight.

Kind Regards,

~EmployeeFirstName~
~Reports-Address1~
Phone: ~Reports-Phone~
Email: ~Reports-Email~
~Reports-Internet~

Timestamp: ~CurrentDateTime~

The email body default for order 3rd party services.

See SupplyOrderEmailSubject / SupplyOrderEmailBody for more information.

Report settings

Each Report setting can be overridden per FBO location, by adding the setting in the ‘FBO location settings' section.

Setting	Default	Description

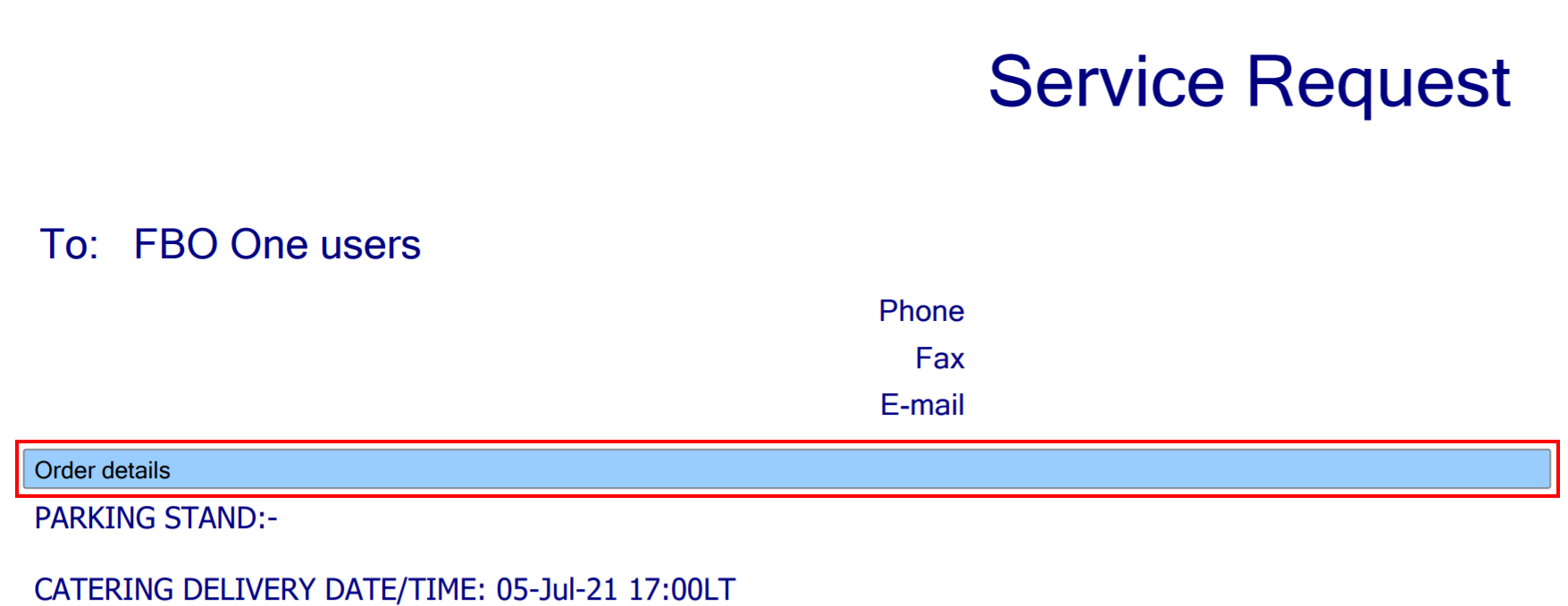

SupplyOrder-Color	#99CCFF	Changes the background color of the header bar of the Supply Order PDF.

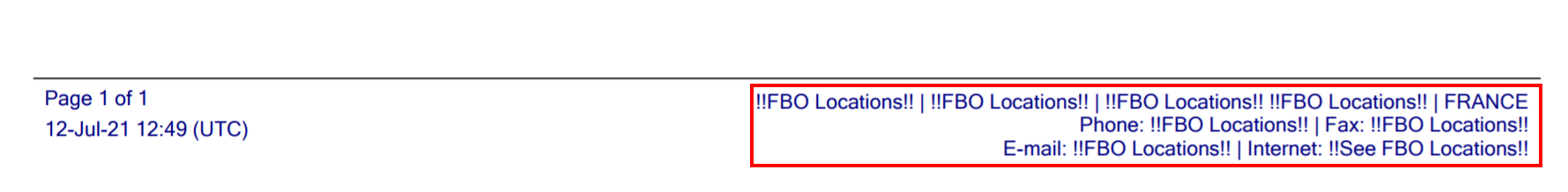

SupplyOrder-Footer	~Address1~ \| ~Address2~ \| ~Zipcode~ \| ~City~ \| ~Country~\nPhone: ~Phone~ \| Fax: ~Fax~ \| E-mail: ~Email~\nFreq: ~Frequency~ \| SITA: ~Sita~ \| Internet: ~Internet~	Changes the footer text of the Supply Order PDF. See Email template variables for more options.

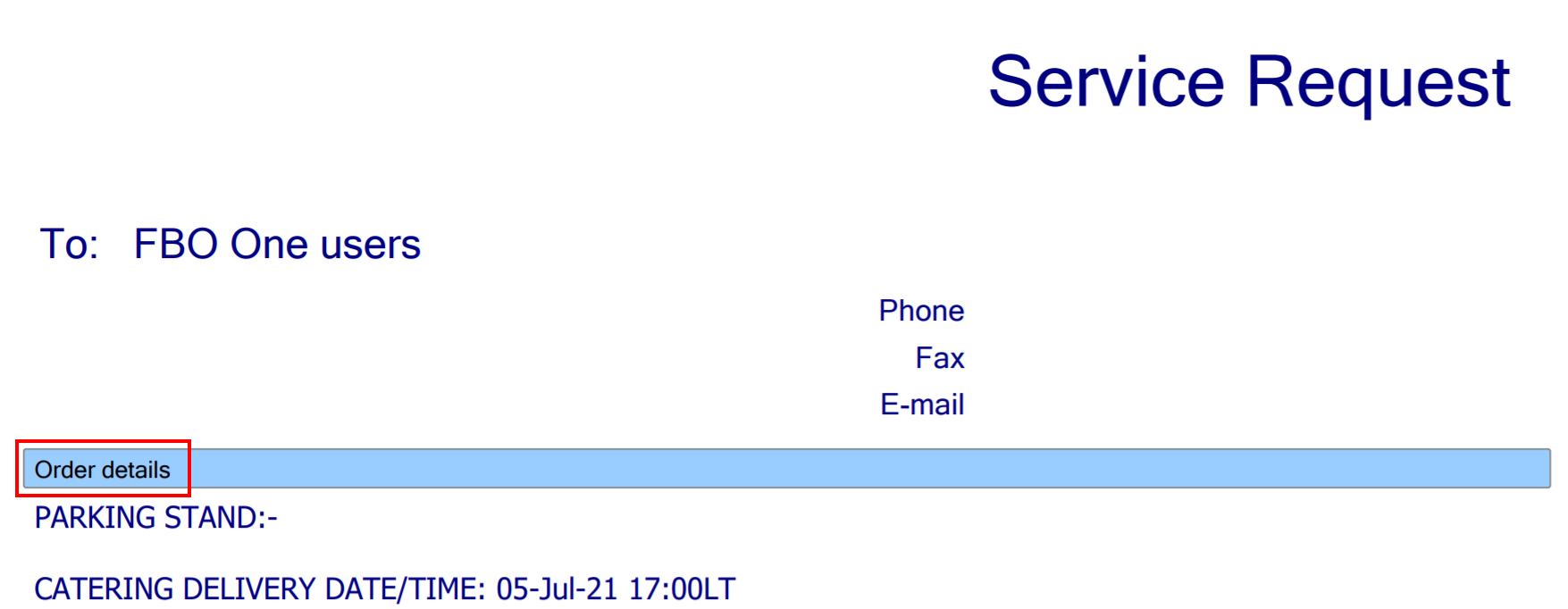

SupplyOrder-HeaderTextColor	Black	Changes the header text color (in the header bar) of the Supply Order PDF.

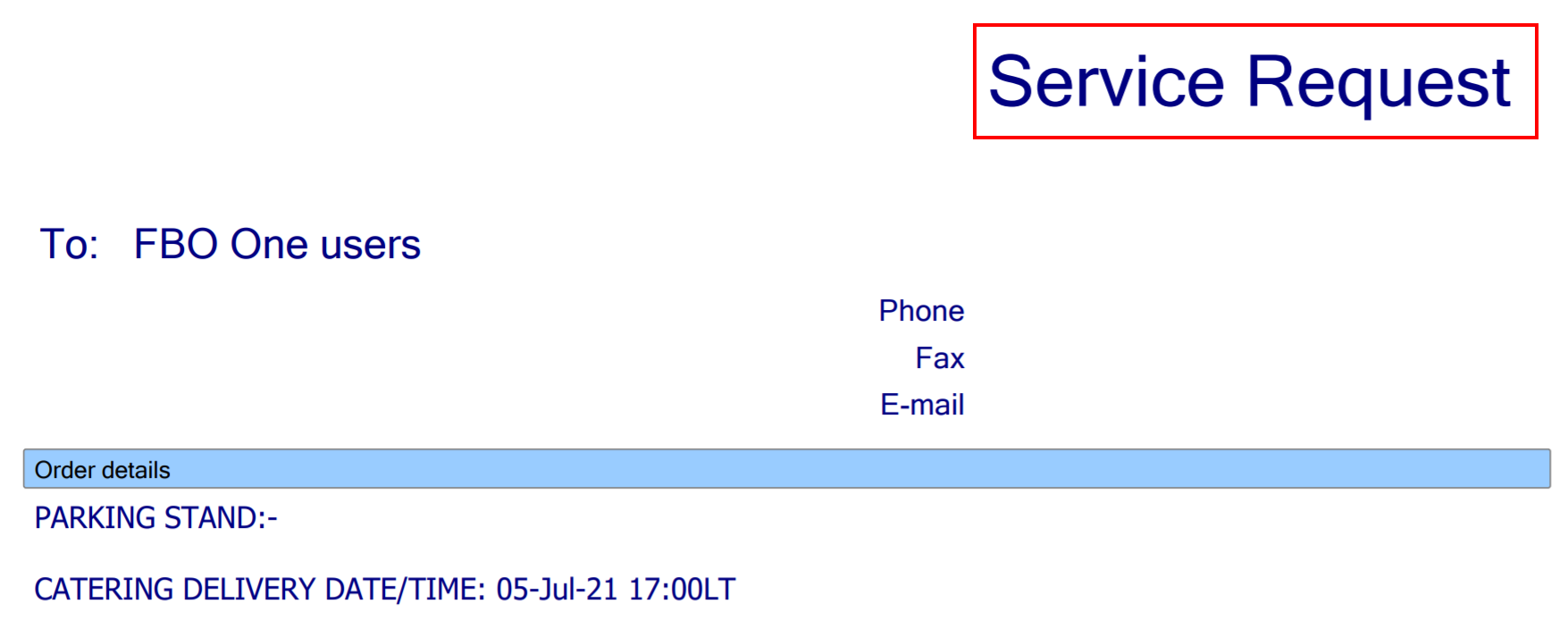

SupplyOrder-HeaderTitle	Service Request	Changes the header title text of the Supply Order PDF

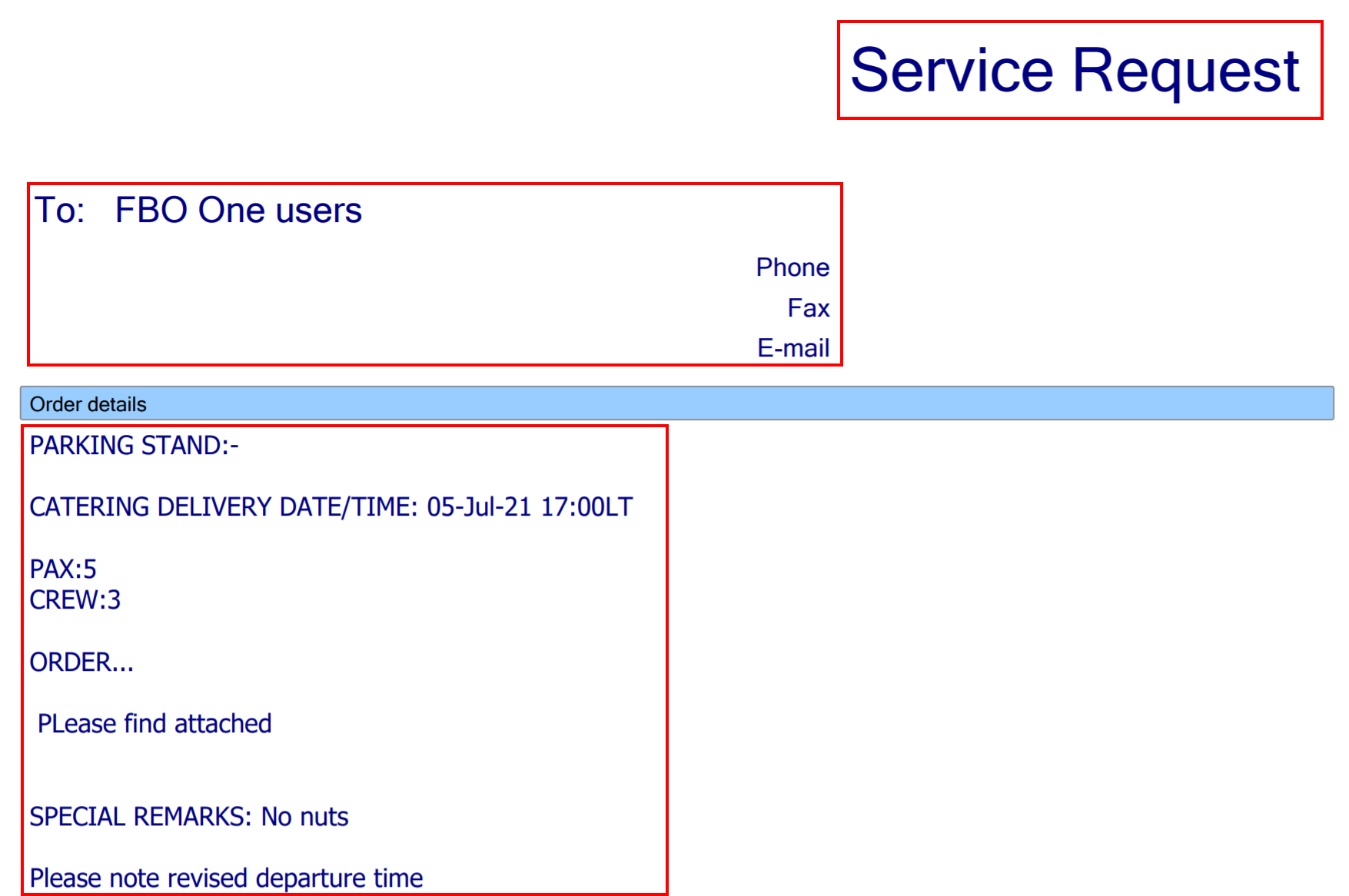

SupplyOrder-TextColor	#000081	Changes the text color of the Supply Order PDF
