The Receipt Line data provider/query returns the order lines and order-related data relevant to a receipt or a single-page invoice.
The data provider can be used for building a receipt/invoice or even a single-page invoice RDL-based template.
Contents

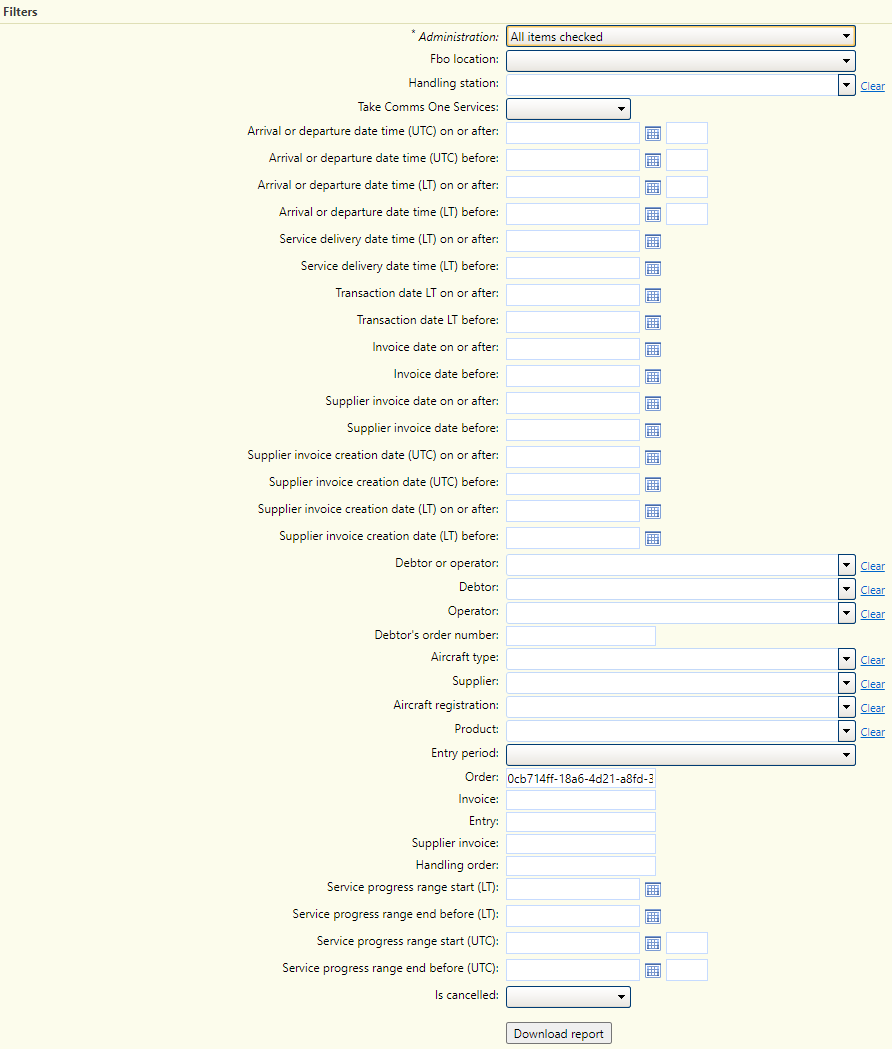

Filters
This query can return each receipt line for multiple orders. For a single order, filter by Order with OrderID.
Filter |
Description |
Mandatory |
---|---|---|
Administration |
Filters on Administration. Single or multiple Administrations can be selected. |
YES |
Fbo location |
Filters on FBO location. Single or multiple FBO locations can be selected. |
NO |
Handling station |
Filter by Handling station. See Handling station (Glossary). |
NO |
Take Comms One Services |
Filter to show Comms One services. |
NO |
|
Filter by date and time in UTC or LT of an order’s arrival or departure, use both on or after and before to create a data range. Note: ‘Arrival or departure date time’ UTC and LT filters cannot be used together.
For OTC’s the start/end date/times are considered if data provider settings IncludeOtcOrdersByStartDate or IncludeOtcOrdersByEndDate are set to 'TRUE'. |
NO |
Transaction date LT on or after / Transaction date LT before |
Filter between order transaction on or after date and order transaction before date (last calculated date), use both on or after and before to create a data range. |
NO |
Invoice date on or after / Invoice date before |
Filter between Invoice on or after date and Invoice before date, use both on or after and before to create a data range. |
NO |
|
Filter between Supplier invoice on or after date and before date, use both on or after and before to create a data range. |
NO |
|
Filter between Supplier invoice on or after creation date and before creation date, use both on or after and before to create a data range. |
NO |
Debtor or operator |
Filter by contact present on an order’s debtor or operator field. |
NO |
Debtor |
Filters on an order’s debtor contact. |
NO |
Operator |
Filters on an order’s Operator contact. |
NO |
Debtor's order number |
Filter on an order’s ‘Debtor’s order number’.
|
NO |
Aircraft type |
Filter by an order’s aircraft type. |
NO |
Supplier |
Filter by orderline supplier. |
NO |
Aircraft registration |
Filter by an order’s aircraft registration. |
NO |
Product |
Filter by product code. |
NO |
Entry period |
Filters on entry periods. See Entry periods (Back office). |
NO |
Order |
Filters on the Order ID. The Order ID can be found in the Classic screens when on Order page, in the browser address bar after ‘Orderid=’, e.g. |
NO |
Invoice |
Filters on the Invoice ID. The Invoice ID can be found in the Classic screen when on Invoice page, in the browser address bar after ‘Invoiceid=’, e.g. |
NO |
Entry |
Filters on the Entry ID. The Entry ID can be found in the Classic screen when on entry page, in the browser address bar after ‘Entryid=’, e.g. |
NO |
Supplier invoice |
Filter by supplier invoice number. |
NO |
Is expanded |
Indicates if the report should show rows that are collapsed to the customer. |
NO |
Receipt audience |
Indicates the receipt audience.
|
NO |
Data provider settings
The following ‘Data provider settings’ can be set in Reports (Administration) for the query of a report. All settings must be separated by a semi-colon ';'. If not specified the default settings apply.
Setting |
Type |
Default |
Description |
---|---|---|---|
ReceiptAudience |
String |
OperatorsCopy |
Indicates the receipt audience. Possible values
|
ExpandCollapsedGroups |
Boolean |
FALSE |
This setting allows to display detailed child order line services and prices. |
RecalculateOrders |
Boolean |
TRUE |
Recalculates all open orders that match the filter. This will make sure that any orders that are not yet invoiced are up to date. Each order is normally recalculated and stored when viewed in the order screen. An order may be out of date since it was last viewed, for example if a price agreement has been changed since. Setting RecalculateOrders to false will speed up the report and is generally safe. It may also prevent that the report fails due to a calculation error; for example when some orders have invalid data that need correction. |
IncludeCancelledOrders |
Boolean |
TRUE |
If Cancelled orders should be included in the report. |
ExtraDaysInFuture |
Integer |
0 |
This allows to add some days to the 'before' parameter. Note: Extra days are added to the following filters only: Arrival or departure date time, Transaction Date and Invoice date. Useful for daily reports that should span more than the default single day. |
IncludeOtcOrdersByStartDate |
Boolean |
FALSE |
When set to true, it allows to add OTC orders which do not have flight legs into a order report based on the arrival/departure filter. The Arrival/Departure date filter will match on OTC order start time fields. |
IncludeOtcOrdersByEndDate |
Boolean |
FALSE |
When set to true, it allows to add OTC orders which do not have flight legs into a order report based on the arrival/departure filter. The Arrival/Departure date filter will match on OTC order end time fields. |
IncludeOrdersInStage |
String |
FrontAndBackOffice |
Whether or not orders in a particular stage should be included in the report. If not specified, orders being in front or in back office stage will be included. Possible values: Quote, FrontOffice, BackOffice, FrontAndBackOffice |
IncludeOrdersInEndState |
Boolean |
TRUE |
When setting this to false, the query will return only a set of orders that are not in a workflow end state. A typical workflow end state is the order invoiced state. For example you can use this setting when you need to report on all orders that haven’t been yet invoiced. |
Columns
Column |
Description |
Example |
---|---|---|
AccountsReceivableAddressLine1 |
‘Accounts receivable address line 1’ defined in Administrations (Administration), see Administration (Fields). |
Thermiekstraat 24 |
AccountsReceivableAddressLine2 |
‘Accounts receivable address line 2’ defined in Administrations (Administration), see Administration (Fields). |
Schiphol Airport |
AccountsReceivableCity |
‘Accounts receivable city’ defined in Administrations (Administration), see Administration (Fields). |
Amsterdam |
AccountsReceivableCountry |
‘Accounts receivable country’ defined in Administrations (Administration), see Administration (Fields). |
Netherlands |
AccountsReceivableName |
‘Accounts receivable name’ defined in Administrations (Administration), see Administration (Fields). |
FBO One |
AccountsReceivableVatNo |
‘Accounts receivable vatno’ defined in Administrations (Administration), see Administration (Fields). |
NL 1234 5678 |
AccountsReceivableZipCode |
‘AccountsReceivableZipCode’ defined in Administrations (Administration), see Administration (Fields). |
1117 BG |
Aircraft type |
|
Cessna Citation XLS - C56X (CITATION XLS) |
Amount decimal |
|
|
Amount formatted |
|
|
AOC expiry date |
|
- |
AOC number |
|
|
AOC number and expiry date |
|
- |
Arrival datetime |
|
01-Jan-18 16:00 |
Arrival datetime LT |
|
01-Jan-18 16:00 |
Arrival datetime UTC |
|
01-Jan-18 16:00 |
Arrival Or Departure |
|
A |
Billing remark |
|
|
Captains name |
|
|
Charged currency code |
|
EUR |
Debtor address |
|
Oscar Avia 13 |
Debtor address 1 |
|
67a Victoria Road |
Debtor address 2 |
|
|
Debtor city |
|
Horley |
Debtor contact number |
|
RCA012 |
Debtor country |
|
United Kingdom |
Debtor name |
|
Oscar Avia 13 |
Debtor order number |
|
|
Debtor state |
|
West Sussex |
Debtor VAT number |
|
GB976922467 |
Debtor zip code |
|
RH6 7QH |
DebtorName |
|
Oscar Avia 13 |
Density |
|
0 |
Density formatted |
|
|
Departure datetime |
|
|
Departure datetime LT |
|
|
Departure datetime UTC |
|
|
Form of payment for amount due |
|
BILL EUR |
Form of payment for amount due caption |
|
Form of payment for balance due |
Grand total decimal |
|
522 |
Grand total excl VAT decimal |
|
522 |
Grand total excl VAT formatted |
|
522.00 |
Grand total formatted |
|
522.00 |
Grand total in words |
|
|
Grand total in words caption |
|
Order amount in words: |
Grand total VAT decimal |
|
0 |
Grand total VAT formatted |
|
0.00 |
GrandTotalInBookedCurrencyDecimal |
|
522 |
GrandTotalInBookedCurrencyFormatted |
|
522.00 |
GrandTotalVATInBookedCurrencyDecimal |
|
0 |
GrandTotalVATInBookedCurrencyFormatted |
|
0.00 |
Handling ID |
|
ce3d9e57-1ba0-4e14-9d14-a3c0ca1978a3 |
Handling location |
|
EGKB/BQH (Biggin Hill) |
Handling office name |
|
FBO One Airport |
Has unit and quantity |
|
TRUE |
Inbound flight leg description |
|
Arrival from GMMX on 1-Jan-18 16:00 (UTC), 2 (? transit) pax |
InboundOriginSystemId |
|
|
InboundOriginSystemIdLastSeenAtUtc |
|
|
InboundOriginSystemLastRow |
|
|
InboundOriginSystemNotes |
|
|
Indent level |
|
0 |
Invoice date |
|
|
Invoice ID |
The Invoice unique ID in GUID format. |
b9bfbc6c-269d-4dcb-877b-7f76f90eb138 |
Invoice number |
The invoice number. |
1014966 |
Invoice number and date |
|
|
Invoice title |
‘Invoice title’ defined in Administrations (Administration), see Administration (Fields). |
|
InvoiceAmountDueDecimal |
|
|
InvoiceAmountDueFormatted |
|
|
InvoiceChargedCurrencyCode |
|
|
InvoiceCreatedDateTimeLt |
|
01-Jan-01 |
InvoiceCreatedDateTimeUtc |
|
01-Jan-01 |
InvoiceFormOfPaymentForAmountDue |
|
|
InvoiceInternalRemarks |
|
|
Line item description |
|
HANDLING FEES GROUP | Handling Fees |
Logo image |
|
|
MTOW |
|
9163 kg |
Net quantity |
|
0 |
Net quantity formatted |
|
|
Operator |
|
Oscar Avia 13 (RCA012) |
OperatorAddressExclName |
|
67a Victoria Road |
OperatorNameExclContactNumber |
|
Oscar Avia 13 |
Order date |
|
30-Oct-17 |
Order ID |
|
84aea549-0d04-4ea4-97a0-18e18976ff6a |
Order ID |
The Order unique ID in GUID format. |
af710d11-6159-4b34-8caf-88b735ed31be |
Order key |
The Order key contained in the invoice. |
FBO-60066 |
Order line ID |
|
43422cd0-263c-4360-bd27-8780aa298a87 |
Order state |
|
Cancelled |
Outbound flight leg description |
|
Departure to - on -, 0 pax |
OutboundOriginSystemId |
|
|
OutboundOriginSystemIdLastSeenAtUtc |
|
|
OutboundOriginSystemLastRow |
|
|
OutboundOriginSystemNotes |
|
|
Payment term days |
|
30 |
Payment term description |
|
30 days (31-Jan-18) |
Payment term due date |
|
31-Jan-18 |
Product code |
|
HANDLING FEES GROUP |
Product description |
|
Handling fee |
Product ID |
|
f9dd8fe9-7722-416c-9f9d-98d4bf1b5393 |
QRCode |
|
|
Quantity decimal |
|
1 |
Quantity formatted |
|
|
Receipt footer |
|
VAT Registration No: GB 123 4567 89. FBO One is a subsidary of Regional Airports Ltd. |
Receipt header |
|
VAT Registration Number: GB 123 4567 89 | Business Registration Number: 12345678 |
Receipt remarks |
|
- Please direct enquiries to: Handling@fbo.one or Accounts@fbo.one MONEY TRANSFERS TO: |
Receipt title |
|
RECEIPT *TEST* |
Registration code |
|
DAWXL |
Registration code and type name |
|
DAWXL | Cessna Citation XLS - C56X (CITATION XLS) |
Service date formatted |
|
|
Service datetime LT |
|
01-Jan-18 16:00 |
Show as headline |
|
TRUE |
Show price to audience |
|
TRUE |
Temperature |
|
0 |
Temperature formatted |
|
|
Trip number |
|
|
Unit price decimal |
|
|
Unit price formatted |
|
|
VAT amount decimal |
|
|
VAT amount formatted |
|
|
VAT code percentage formatted |
|
|
Weight |
|
0 |
Weight formatted |
|
|
