MovementGridColumns

TIP: If you're having trouble viewing images in this article; right click on the image and select open the Image in a new tab to view it at full resolution.

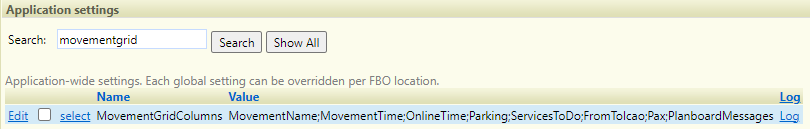

Application Setting Name: MovementGridColumns

Can be configured on a per FBO basis?: Yes

Possible Value(s): See Below

Description:

The MovementGridColumns setting allows for personalised configuration of the Handling planboard.
Note: All columns should be separated by a semi-colon ;

Frequently used examples:

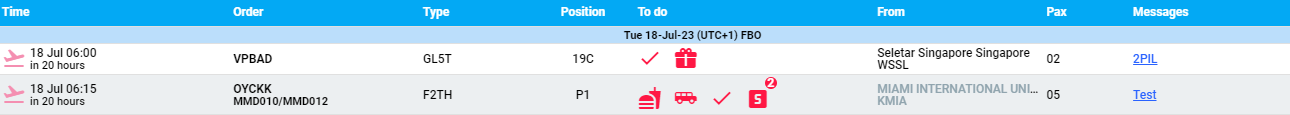

MovementName;MovementTime;Parking;ServicesToDo;FromToIcao;Pax;PlanboardMessages

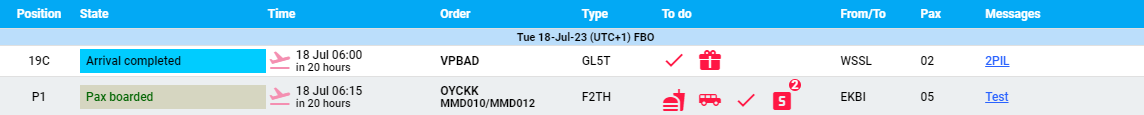

Parking;ColoredOrderStateShortName;MovementTime;Order;AircraftTypeIcao;ServicesToDo;FromToIcao;Pax;PlanboardMessages

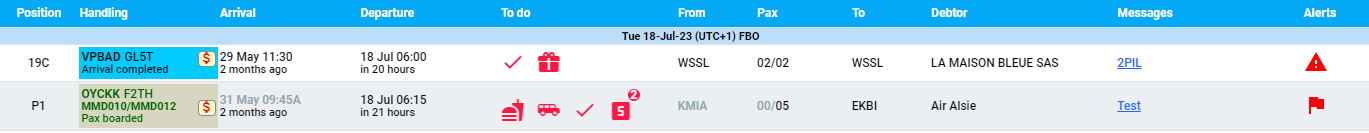

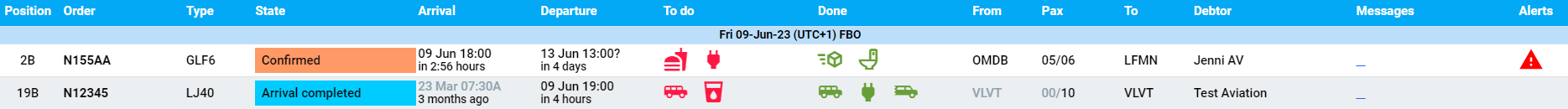

Parking;Order;AircraftTypeIcao;ColoredOrderStateShortName;MostActualArrivalDateTime;MostActualDepartureDateTime;ServicesToDo;ServicesDone;FromIcao;Pax;ToIcao;Debtor;PlanboardMessages;Alerts

MovementTime;Order;AircraftTypeIcao;Parking;ServicesToDo;FromName;Pax;PlanboardMessages

Available columns

Name	Result	Description
AircraftType		Adds a 'Type' column displaying the Aircraft Type (short name). Note: Hovering over shows the full aircraft type name.
AircraftTypeIcao		Adds a 'Type' column displaying the Aircraft Type (ICAO). Note: The aircraft type ICAO code is also displayed in the 'HandlingName' and 'MovementName'. Note: Hovering over shows the full aircraft type name.
Alerts		Adds a 'Alerts' column, showing a flag for important bulletin board messages and a warning triangle for critical bulletin board messages attached to the handling. See Bulletin board Note: Hovering over will show the message in full.
Crew		Adds a 'Crew' column, showing the crew member count. On the Handlings page, the count will be shown as inbound/outbound, for example: 04/05, For Movements, a single figure is shown for the flight leg. See Crew/Pax Tab.
ColoredOrderStateShortName		Adds a 'State' column with the state name and color shown. See Handling Order Workflow (Administration)
Debtor		Adds a 'Debtor' column showing primary order debtor.
FBO		Adds a 'FBO' column, showing the FBO that owns the order. Useful when browsing handlings for an FBO location group.
From		Adds a 'From' column showing the origin of the arriving flight as ICAO designation and airport name Note: Hovering over shows the full station name.
FromIATA		Adds a 'From' column, showing the origin of the arriving flight as IATA designation. Note: Hovering over shows the full station name.
FromIcao		Adds a 'From' column showing the origin of the arriving flight as ICAO designation. Note: Hovering over shows the full station name.
FromName		Adds a 'From' column, showing the origin of the arriving flight as airport name. Note: Hovering over shows the full station name.
FromTo		Adds a 'From/To' column, showing the origin (for arrivals) or destination (for departure) ICAO code and airport name.
FromToIcao		Adds a 'From/To' column, showing the ICAO code of the origin or destination.
FromToIata		Adds a 'From/To' column, showing the IATA code of the origin or destination.
Gendec		Adds a 'Gendec' column, indicating if a general declaration (customs and immigration form) is required for arrival or departure. To define which stations require gendecs see FBO Location (Fields) and 'Stations requiring an inbound General Declaration' and 'Stations requiring an outbound General Declaration'

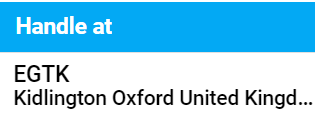

HandlingStation		Adds a 'Handle at' column indicating the airport for grounding handling (can be remote in case of regional coordination). See How to set-up an additional handling station for an existing FBO Location.
MostActualArrivalDateTime		Adds an 'Arrival' column, showing in order of significance: Actual arrival time, airport slot time, airway slot time, ETA from flight tracker, Scheduled time of arrival (STA)
MostActualDepartureDateTime		Adds an 'Departure' column, showing in order of significance: Actual departure time, airport slot time, airway slot time, ETD from flight tracker, Scheduled time of departure (STD)
MovementName		Adds a 'Movement' column, showing the tail number, flight number, aircraft type, workflow state and payment icon (if applicable). Note: Background color is based upon current workflow state.
MovementTime		Adds a 'Time' column, showing the icon for movement or order type (arrival, departure, over the counter order), most actual time, and time until or time since arrival/departure.
NeedsPayment		Adds a 'Pay' column showing a red $ icon in case the order requires payment before departure. An orange $ icon in case the order can be paid with a card on file. Note: The icon will disappear when the order has no outstanding balance due.
OnlineTime		Adds an 'On-line' column displaying the A/C On-line Time in Red. This is based on a custom value.
Operator		Adds an 'Operator' column, showing the aircraft operator assigned to the handling.
Order		Adds an 'Order' column, showing the tail number and flight number.
OrderKey		Adds an 'Order' column, showing the Order Key.
OrderStateColorIcon		Adds a 'State' column, showing the color of the order state as a small identifying square without any text.
OrderWithStateColor		Adds an 'Order' column with the color of the order state, plus tail number and order state text included. Note: The aircraft type and needs payment icon is omitted. See HandlingName and MovementName columns to include these.
Parking		Adds a 'Position' column, showing the current or pre-assigned parking position.
Pax		Adds a 'Pax' column, showing the passenger count. On the Handlings page, the count will be shown as inbound/outbound, for example: 04/05, For Movements, a single figure is shown for the flight leg.
PlainOrderStateShortName		Adds a 'State' column, showing the order state in plain text.
PlanboardMessages		Adds a 'Messages' column displaying any bulletin board messages that have been set to type Planboard Message. See MaxMsgLengthInPlanboard to define maximum characters shown. Note: Hovering over will show the message in full (if truncated).
Quickturn		Adds a 'Quick' column, showing a icon If arrival and departure are within the "QuickTurn threshold". See QuickTurn for defining the amount of hours between arrival and departure.
Reviews		Adds a '3rd' column and shows if any third party updates have been received from NetJets or flight trackers CFMU and FlightAware. See Online Interfaces. Note: Hovering over shows more information.

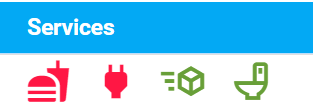

Services		Adds a 'Services' column that displays a red icon for services still to be completed, and a green icons for completed services. Note: Hovering over shows 'ProductName \| State \| DeliveryDateLT \| IntRemarks \| ExtRemarks'
ServicesDone		Adds a 'Done' column displaying green icons for services completed. Note: Hovering over shows 'ProductName \| State \| DeliveryDateLT \| IntRemarks \| ExtRemarks'
ServicesToDo		Adds a 'To Do' column displaying red icons for active services still to be completed. Note: Hovering over shows 'ProductName \| State \| DeliveryDateLT \| IntRemarks \| ExtRemarks'
To		Adds a 'To' column showing showing the destination of the departing flight as ICAO designation and airport name Note: Hovering over shows the full station name.
ToIATA		Adds a 'To' column showing showing the destination of the departing flight as IATA designation. Note: Hovering over shows the full station name.
ToIcao		Adds a 'To' column showing showing the destination of the departing flight as ICAO designation. Note: Hovering over shows the full station name.
ToName		Adds a 'To' column showing showing the destination of the departing flight as airport name. Note: Hovering over shows the full station name.
