Introduction:
This CreateHandlingOrder transition is a create screen for a normal handling order or scheduled order, including all flight details for both arrival and departure and parking position.
Contents:
Transition properties
Application/FBO settings
The following Application and FBO location settings can be applied to have an effect on the transition.
Setting |
Type |
Default |
Can be applied to the FBO location |
Description |
Example |
---|---|---|---|---|---|
Boolean |
TRUE |
Sets the STA field as non-mandatory when the Pending checkbox is checked. |
|
||
Boolean |
TRUE |
Sets the STD field as non-mandatory when the Pending checkbox is checked. |
|
||
Boolean |
TRUE |
Shows the ‘Airport slot’ fields on create order for flight legs when TRUE. |
|
||
Boolean |
FALSE |
Shows the ‘Flight rule’ fields on create order for flight legs when TRUE. |
|
FBO location fields
The following FBO Location (Fields) can be set to have an effect on the transition.
Setting |
Default |
Description |
Example |
---|---|---|---|
Provides regional coordination |
FALSE |
Shows the ‘Handling station' field for regional handling. Can be adjusted per workflow with configuration string 'ShowHandlingStation’ |
|
Shows tripnumber |
FALSE |
Shows the ‘Trip number’ field for flight legs if TRUE. |
|
Require transit pax count |
FALSE |
Shows the ‘Transit pax’ field for flight legs if TRUE. |
|
Configuration string settings

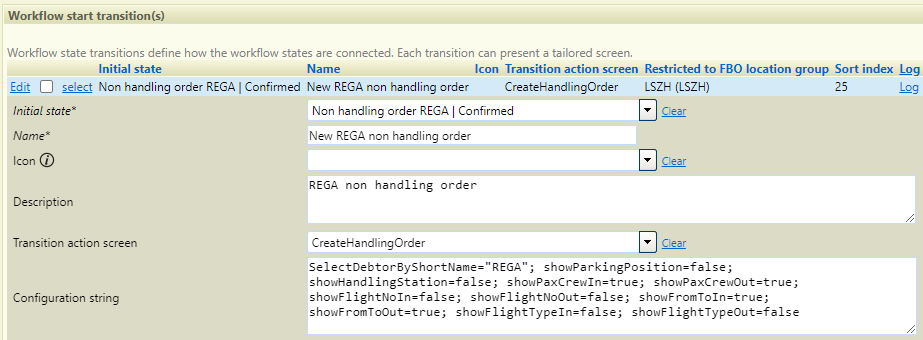

The following ‘Configuration string' settings can be set on the transition in Order workflows.
All settings must be separated by a semi-colon ';'. If not specified the default settings apply.
Configuration string |
Type |
Default |
Description |
Example |
---|---|---|---|---|
showFlightNoIn |
Boolean |
TRUE |
Set this option to false if you don't want to show the inbound flight number box. |
|
showFlightNoOut |
Boolean |
TRUE |
Set this option to false if you don't want to show the outbound flight number box. |
|
showFromToIn |
Boolean |
TRUE |
Set this option to false if you don't want to show the arriving from/to box. |
|
showFromToOut |
Boolean |
TRUE |
Set this option to false if you don't want to show the departing from/to box. |
|
showPaxCrewIn |
Boolean |
TRUE |
Set this option to false if you don't want to show the arriving pax crew box. |
|
showPaxCrewOut |
Boolean |
TRUE |
Set this option to false if you don't want to show the departing pax crew box. |
|
showFlightTypeIn |
Boolean |
TRUE |
Set this option to false if you don't want to show the arriving flight type box. |
|
showFlightTypeOut |
Boolean |
TRUE |
Set this option to false if you don't want to show the departing flight type box. |
|
RegistrationIsMandatory |
Boolean |
TRUE |
Set this option to false if you allow users to create handling orders without specifying an aircraft registration |
|
ShowParkingPosition |
Boolean |
TRUE |
Set this option to false if you don't want to show the parking position box. |
|
ShowHandlingStation |
Boolean |
TRUE |
Default depends on whether the FBO Location field ‘Provides regional coordination’ Setting this option to false hides the handling station, and makes it default to the current FBO Location's station. This is typically used for the 'normal' handling orders for FBO locations that are configured to do outbased handlings. (otherwise, the handling station won't be shown) |
|
SelectDefaultHandlingStation |
String |
BLANK |
This option can be set to a default handling station to use for this order. |
|
SelectDebtorByShortName |
|
BLANK |
This option can be set to select a default debtor to use for this order. It is for example used for 3rd party orders handled by a handling competitor. |
|
CreateScheduledFlights |
Boolean |
FALSE |
This option can be used to create multiple flights simultaneously (repeat orders). See additional info here |
|
SimpleQuoteMode |
Boolean |
FALSE |
If TRUE, hides the following fields (for flight legs):
|
|
RestrictToHandlingStationGroup |
String |
BLANK |

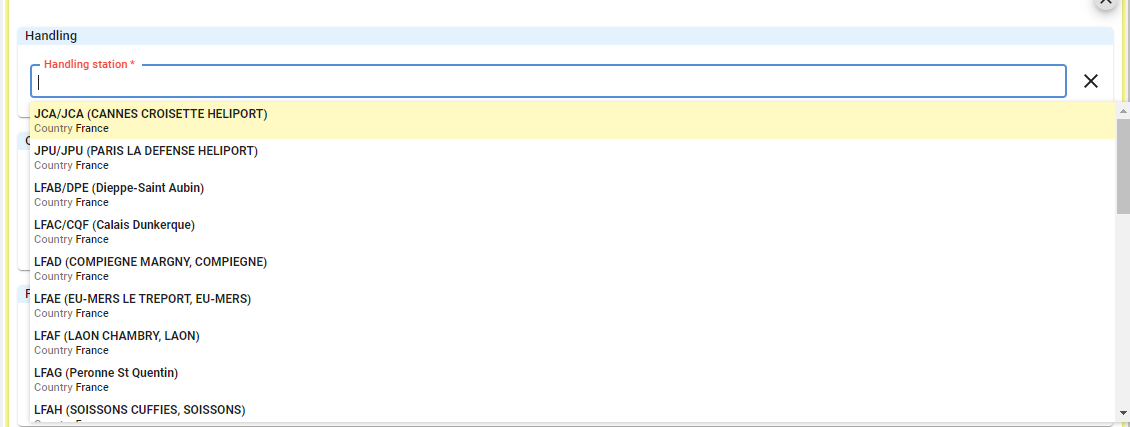

Allows restricting on the workflow state the station group that can be chosen in the ‘Handling station’ field. If blank, the FBO location ‘Handling station group’ is used, if this also blank, then all stations will show. |
|
