In the Handlings and Movements Ops views, it's possible to assign icons to products for better visual representation of tasks and statuses.

Contents:

• Information

  • OPS Product Category Icons

  • Adding Icons

  • Un-assigning an Icon

• Additional Features

  • Workflow State Transition Icons

  • Order Related Custom Value Icons & Colours

  • Animating / Re-sizing Icons



Information

• By default, tasks 'to do' and 'done' are represented by check-marks in either red (to do) or green (done) as shown below.

• The number of tasks/services is represented by a number to the top right of the icon. Hovering over each will display the list of services





OPS Product Category Icons

Various icons may be assigned to key services in order for Ops/Ramp staff to see at a glance which services are done/to do.
This can be set up via Administration OPS Screen OPS Product Category Icons.





Some icons may already be listed under the 'Icons' section. Additional icons can be found by following the links to 'Material Design' and 'Extra Material Design Icons':





Adding Icons

In order to add a new icon to FBO One, first locate the icon from the 'Material Design' or 'Extra Material Design Icons' page.

In the below example, the rubbish bin with an 'X' is going to be setup as the icon for the 'waste removal' product.





This icon, as per the 'Material Design' page, is called 'delete forever'. This same name must be used in the 'FontLigature' field when adding it to FBO One.

1. To add the icon, under the 'Icons' section use the 'Add new' button.

2. Add a description for the icon, in this example 'waste removal',

3. Then add the font ligature (icon name as per 'Material Design').

4. Select 'Save'

Note: If the icon name as shown on 'Material Design', has more than one word, each word must be separated by an underscore ( _ ) e.g. "delete_forever"



NOTE: If the icon is taken from the 'Extra Material Design Icons' page, then the format for the font ligature must be as per the below example:



Once the icon is added to the 'Icons' list, it must then be added to the 'Product Ops Categories' section.

1. Use the 'Add new' button and search by 'description' (above) for the icon,

2. Then add a name, sort index (to define where it shows on the list of icons), and 'Save'.



Next, click on the 'Setup your products with OPS categories'.

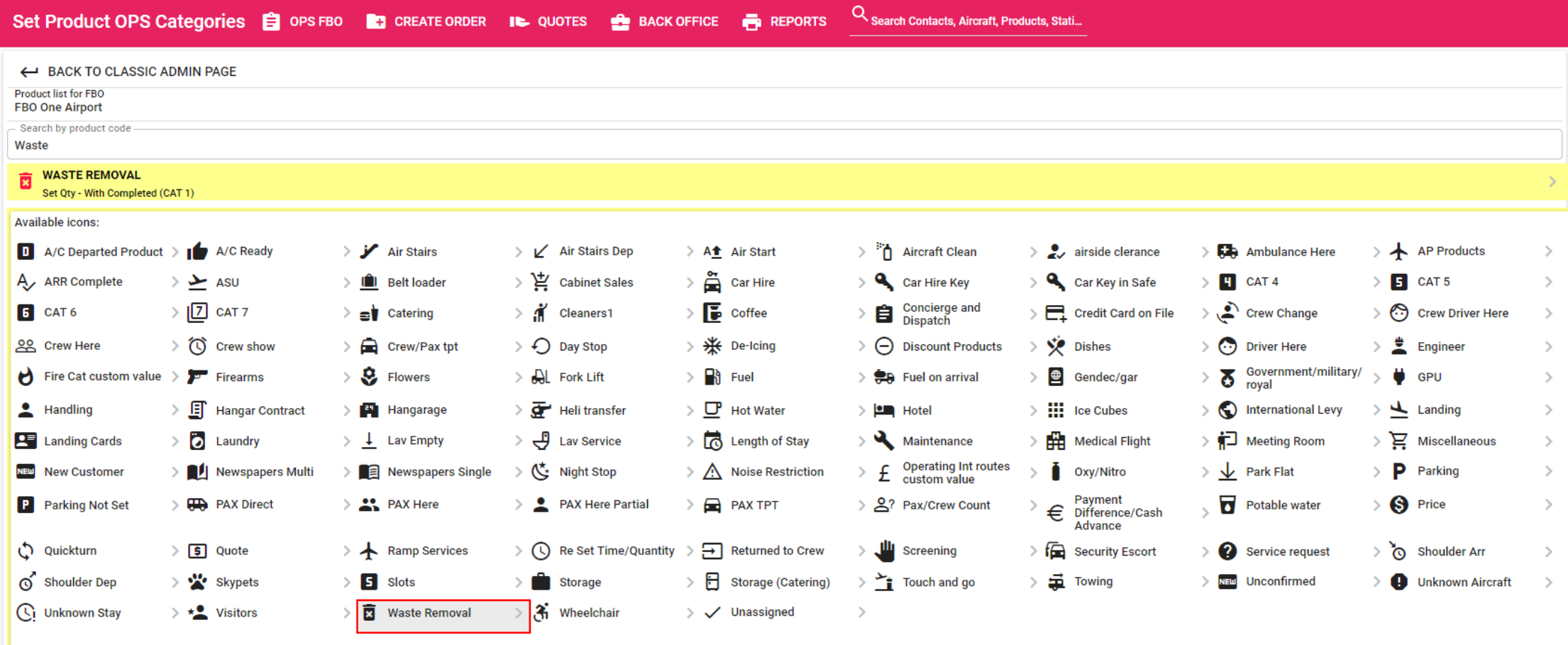

Users will be taken to the 'Set Product Ops Categories' screen in which all products are listed.

1. Locate the product to which an icon should be assigned and click on it.

2. A pop-up containing all available icons will be shown.

3. Select the appropriate icon to assign it.



Now, when this product is shown is 'To do' or 'Done' it will show in the relevant column.



Setting icons to the most frequently used products, allows users to see at a glance, what has been done and what still needs to be done:





Un-assigning an Icon

1. To un-assign an icon from a product, scroll to the bottom of the icons menu and click 'Unassigned'.

2. This will remove the existing icon from the product.

3. Alternatively, select a different icon from the list to simply change the icon





Additional Features



Workflow State Transition Icons

• The above mentioned icons, once setup, may also be linked to Service State transitions within the Administration Workflows configuration (applicable to both Order workflows and Service Workflows).

• In this example, a Service Workflow has been setup to show an icon for both 'Undo Completed' and 'Cancel Service':





The relevant icons should be inserted into the 'Workflow state transition' 'Icon' field.





Order Related Custom Value Icons & Colours

• Icons and different colours may also be added to Custom Values in Order to better catch the attention of Users.

• In the below example, the SkyPets icon has been added to signify a SkyPets flight:



The colour and icon were inserted via Admin Custom Values:



Note: HTML Colour codes can be specified here. Most document or image editors will display colour palettes and codes or search for resources online like this example.



Animating / Re-sizing Icons

• Icons originating from the 'Extra Material Design Icons' page can be both animated to spin and re-sized.

• This can be beneficial when there is need to draw the users attention to a specific icon.


  The following codes may be added to icons:

  To Spin: mdi-spin
  Full Font Ligature Example: mdi mdi-helicopter mdi-spin




To Re-size:
Full Font Ligature Example:
